Vacuum Cord New is NAT’s active mains-conditioning cable, designed to reduce noise before it reaches a connected audio component. The inline housing contains the filtering network while the cable geometry and conductor selection are chosen for high-current delivery.

The assembly uses screened construction, substantial connectors and a mechanically robust enclosure intended for source components, preamplifiers and power amplifiers. Plug and IEC terminations are configured for the destination market and confirmed when ordering.

Complete product information

Manufacturer technical data

Complete technical specification

Complete manufacturer specifications and engineering information for Vacuum Cord New.

Configuration
Vacuum effect AC Cord-Conditioner (non magnetic but elestrostatic isolated type)
Power Output
400 VA const. ; 600 VA peak @ 200 VAC - 260 VAC without any additional adjustment
Power Requirement
200-250V, 50/60Hz 110 VA
Dimensions Chassis
5" (125 mm) wide x 15" (380 mm) deep x 12" (300 mm) high; Total lenght with cable 10' (3m)
Weight
approx. 32 lbs (14.5 kg) unpacked
TOTAL Weight
approx. 46 lbs (21 kg) packed flight case box
Type Complement
12 x EY500A N.O.S. (New Old Stock)
Vacuum Cord New

Product details

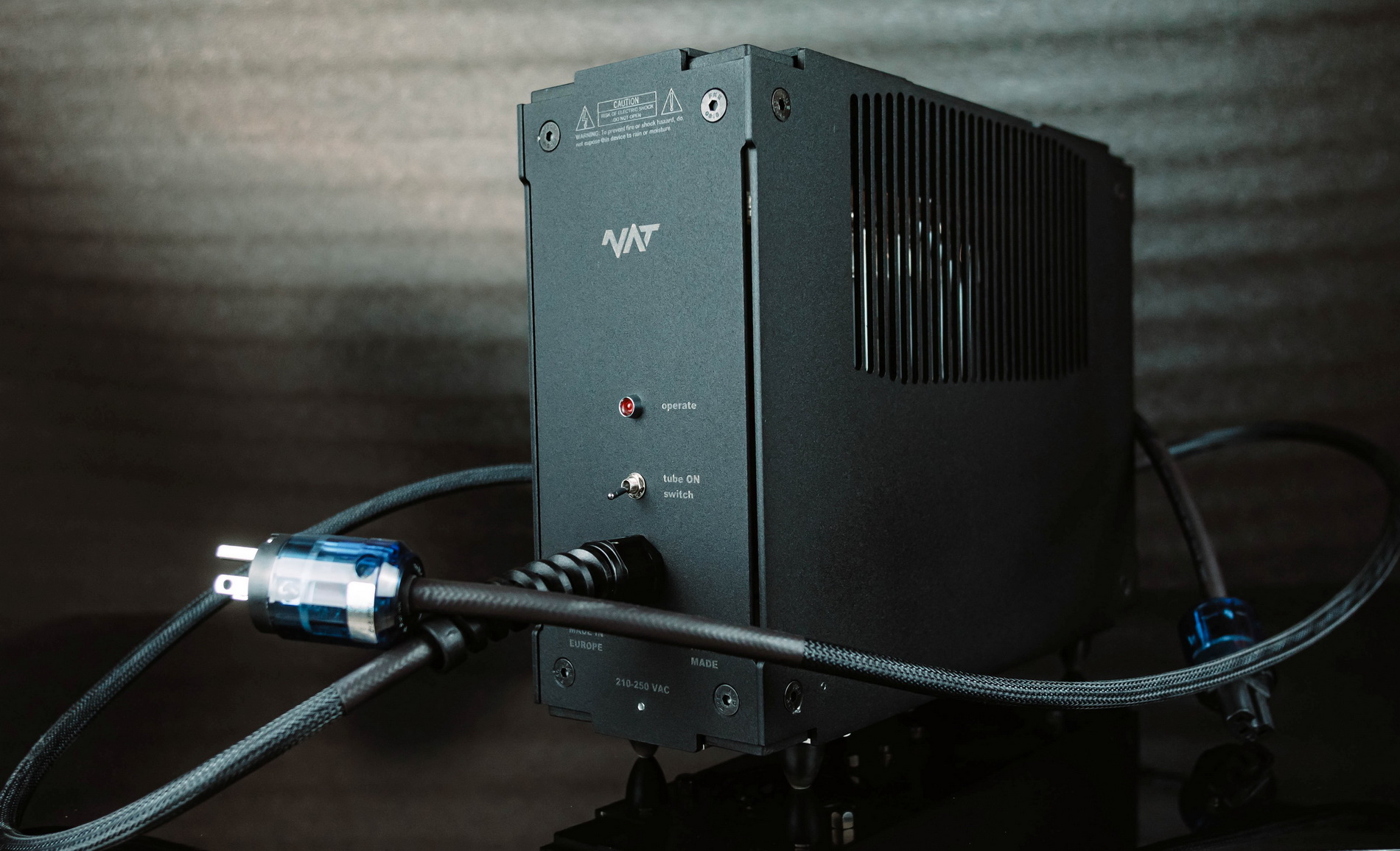

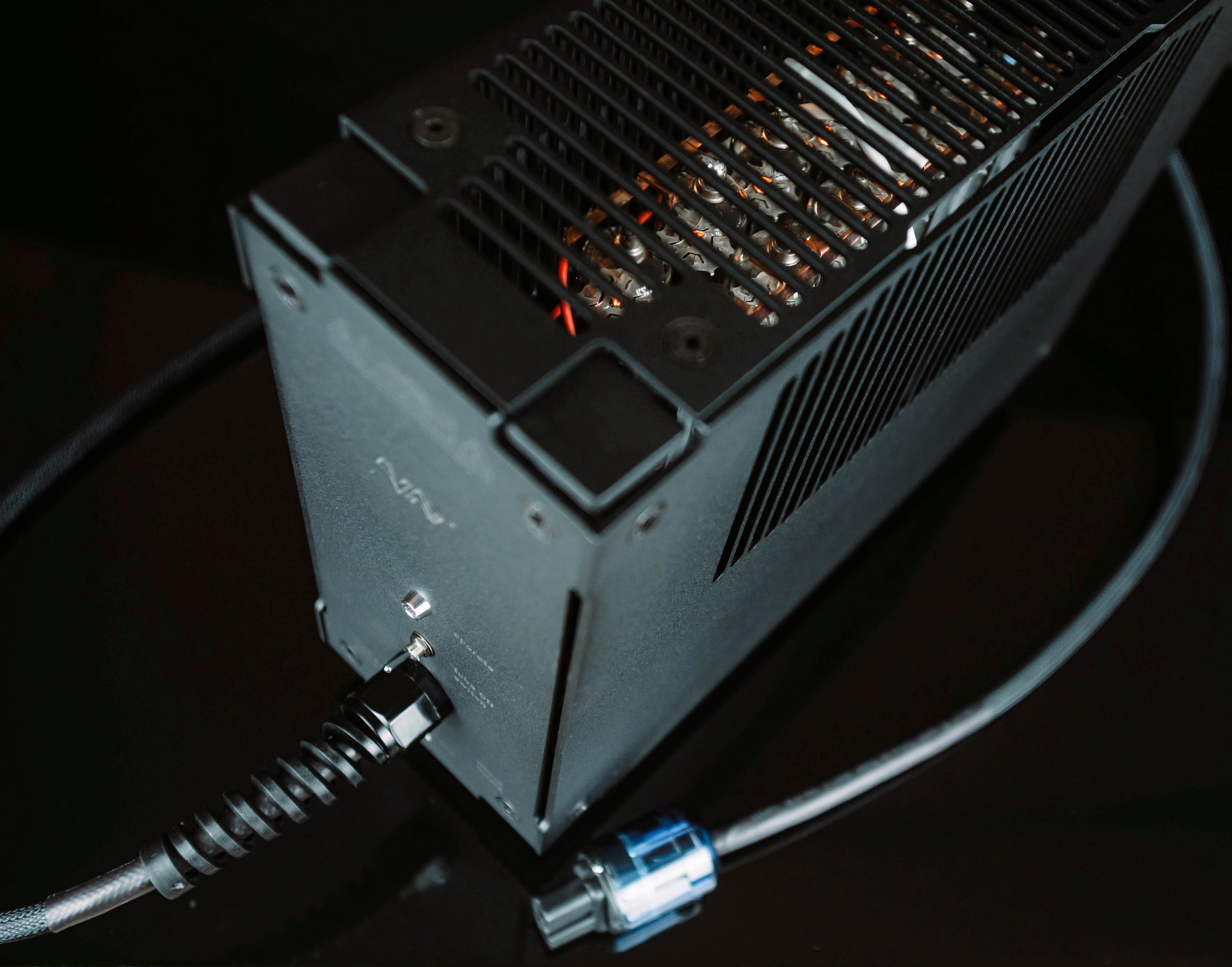

Product photography & engineering
