The detail

Signature Phono Nuvistor is NAT’s fully balanced valve phono stage, operating from the moving-coil input through to its output. Its ten military-grade Nuvistor triodes work without global feedback, while NAT’s vacuum-based inverse RIAA network replaces the conventional resistor-capacitor equalisation approach.

Premium nanocrystalline input, inter-stage and output magnetics support selectable MC loading and both balanced and single-ended operation. A separate conditioned supply provides more than 320 joules of stored energy, with soft-start control and regulated operation for the low-noise gain stages.

The signal path uses closely specified components, silver/OFC input wiring and gold-plated PTFE-insulated connectors. Each unit is hand assembled, adjusted and subjected to an extended factory burn-in.

Complete product information

Manufacturer technical data

Complete technical specification

Complete manufacturer specifications and engineering information for Signature Phono Nuvistor.

Frequency Response
10 Hz to 100 kHz
Input Impedance
Selectable (50,100,200,500,1k,2k) for MC, 47k as standard for MM
Output Impedance
< 300 ohms @ 1kHz
Power Requirements
100 VAC to 240 VAC @ 50 to 60 Hz, max. 60 VA
THD & N
< 0.1 %
Gain
42 dB MM standard + 6 dB MM HIGH + 14db MC ( in TOTAL 62 dB or 56 dB as option)
Dimensions
Main unit: 19" (483 mm) wide x 16.5" (420 mm) deep x 6.6" (168 mm) high P.S. unit: 10.8" (275 mm) wide x 6.9" (175 mm) deep x 2.8" (70 mm) high
Weight
approx. 53 lbs. (24 kg) unpacked with cord-conditioner
Noise
< -84 dB "A" weighted
RIAA Accuracy
± 0.4 dB
Channel Unbalance
< 0.1 dB
Stereo Separation
> 96 dB
Tube Complement
10 x nuvistor low noise triode
Phase Status
(non inverted) 0 degree
Signature Phono Nuvistor

Product details

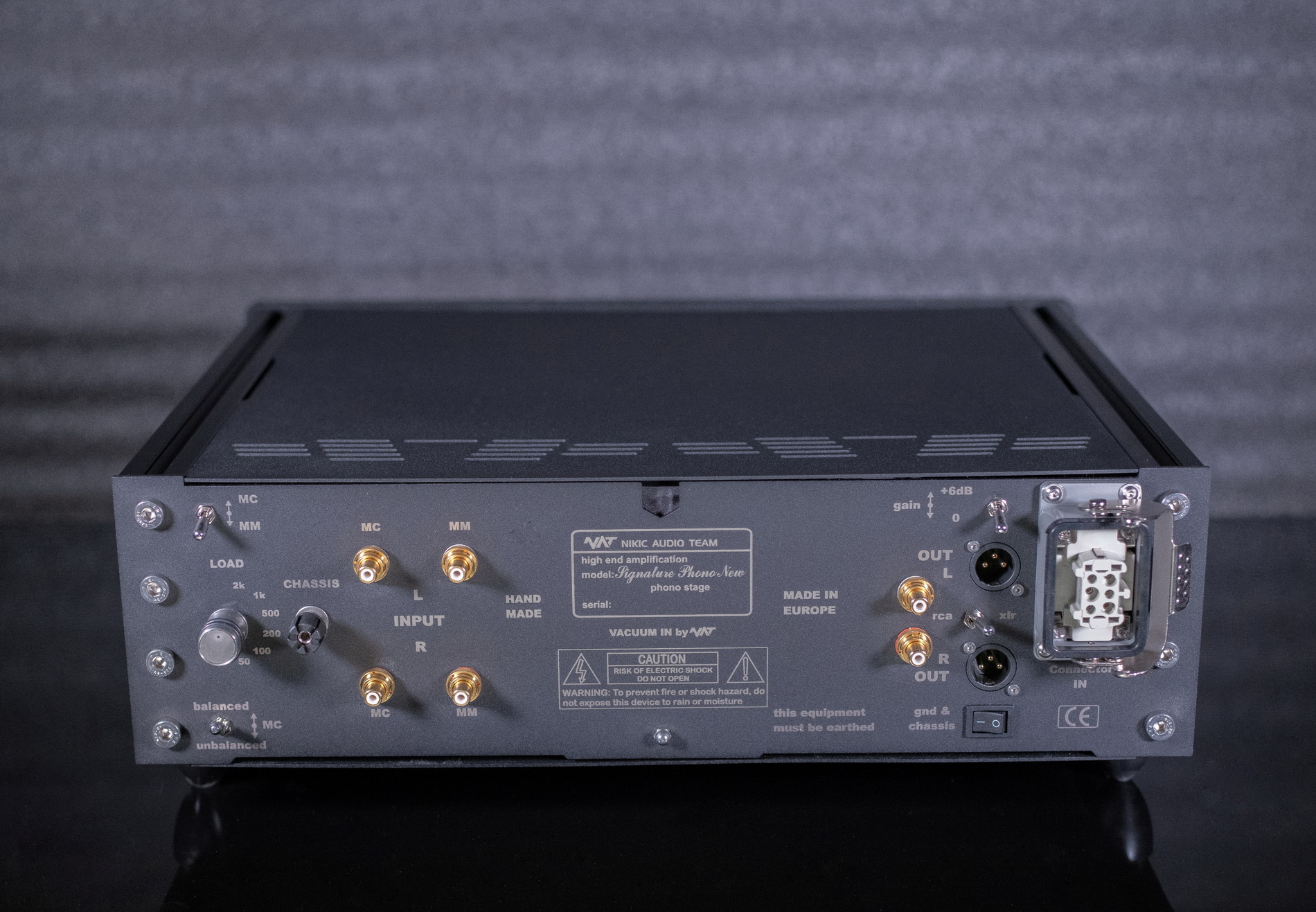

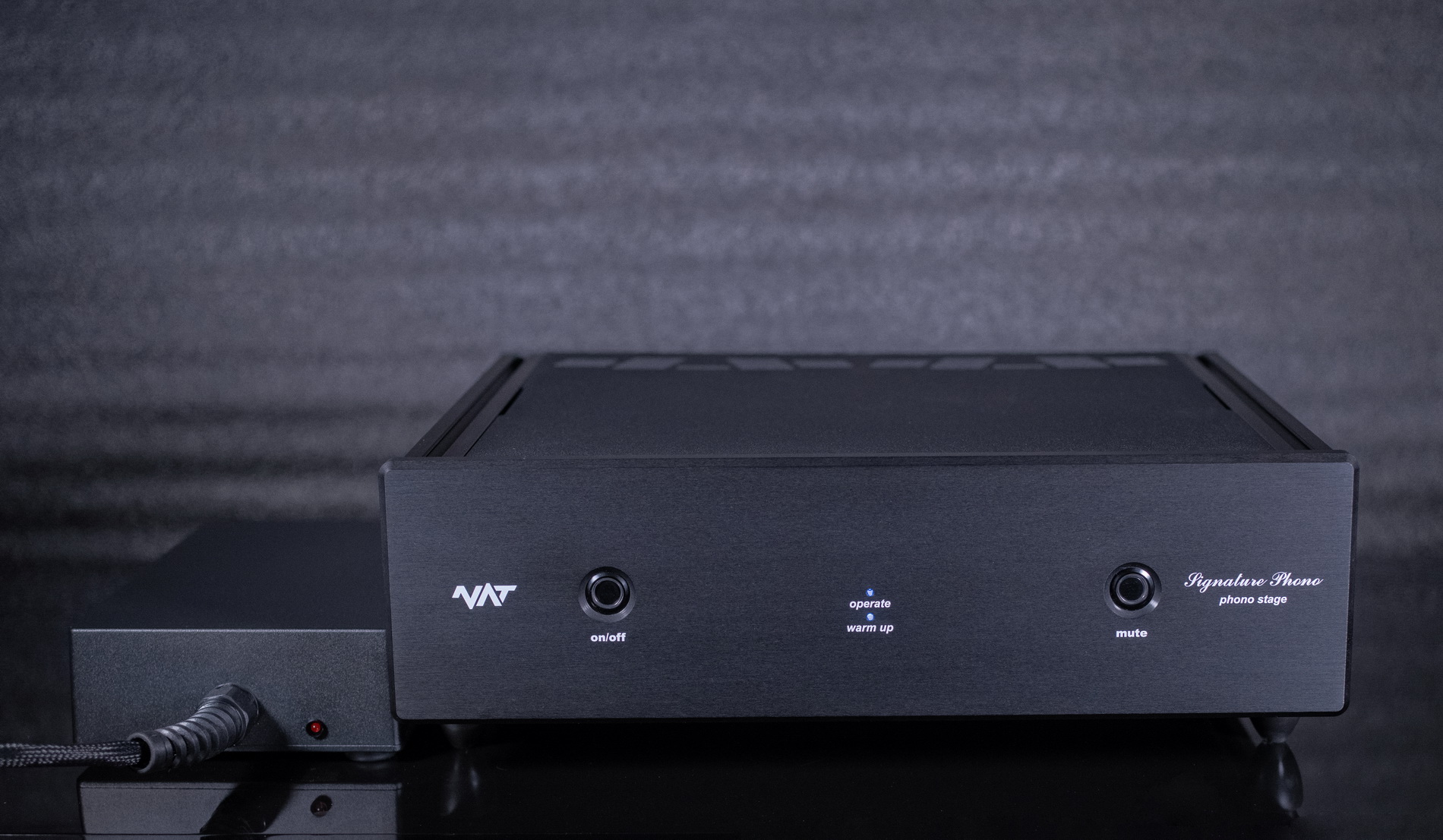

Product photography & engineering
