The detail

Generator CT Version 3 is a single-ended Class-A monoblock built around one military-grade ceramic power triode. NAT’s July 2025 revision introduced a linear-field output transformer, maintaining zero global feedback while improving the interface between the output valve and loudspeaker.

The ceramic valve uses a solid-copper anode and is operated conservatively relative to its maximum dissipation for reliability. Dedicated supply filtering, soft-start control and hand-wired signal paths support the amplifier’s combination of high power and triode simplicity.

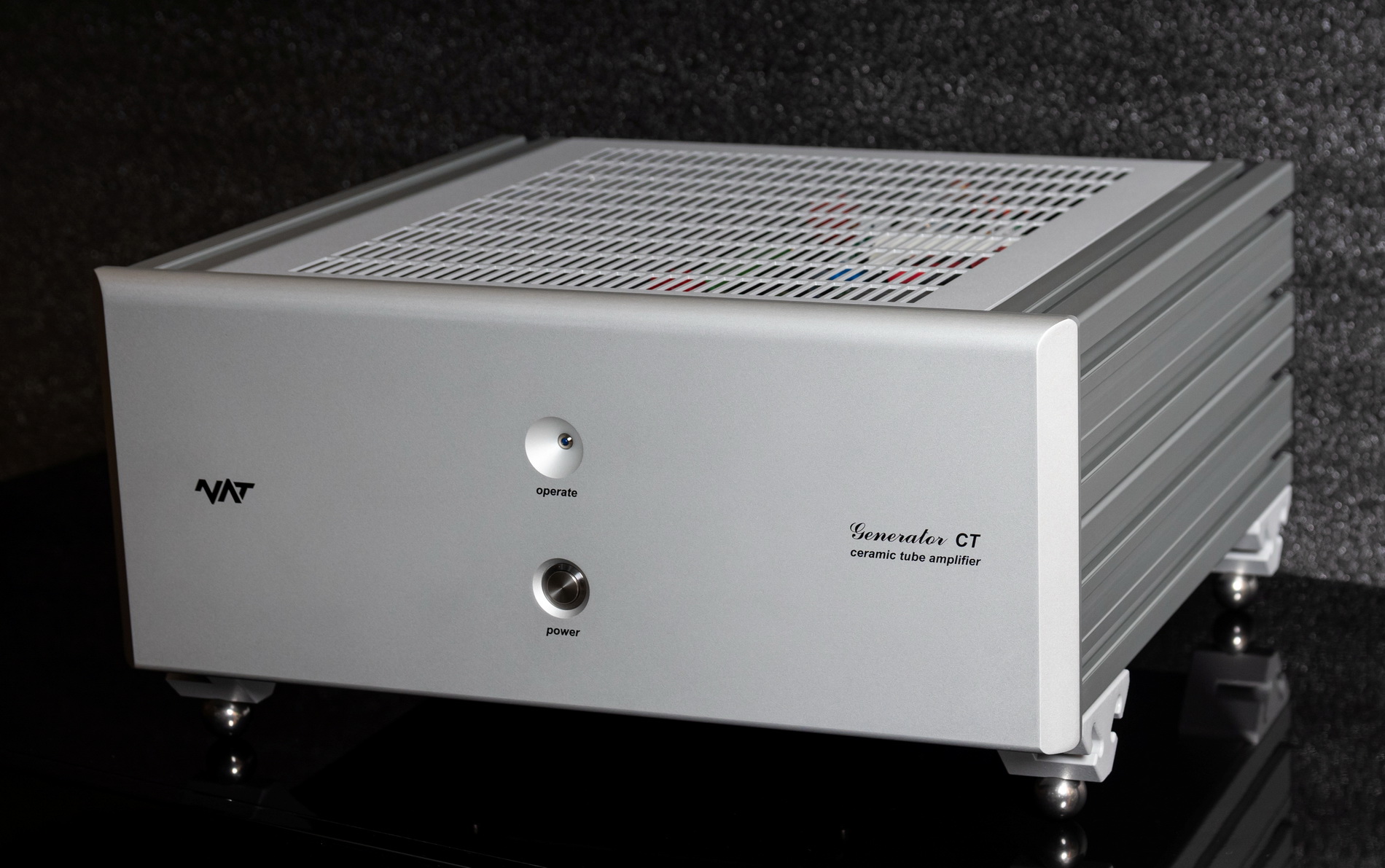

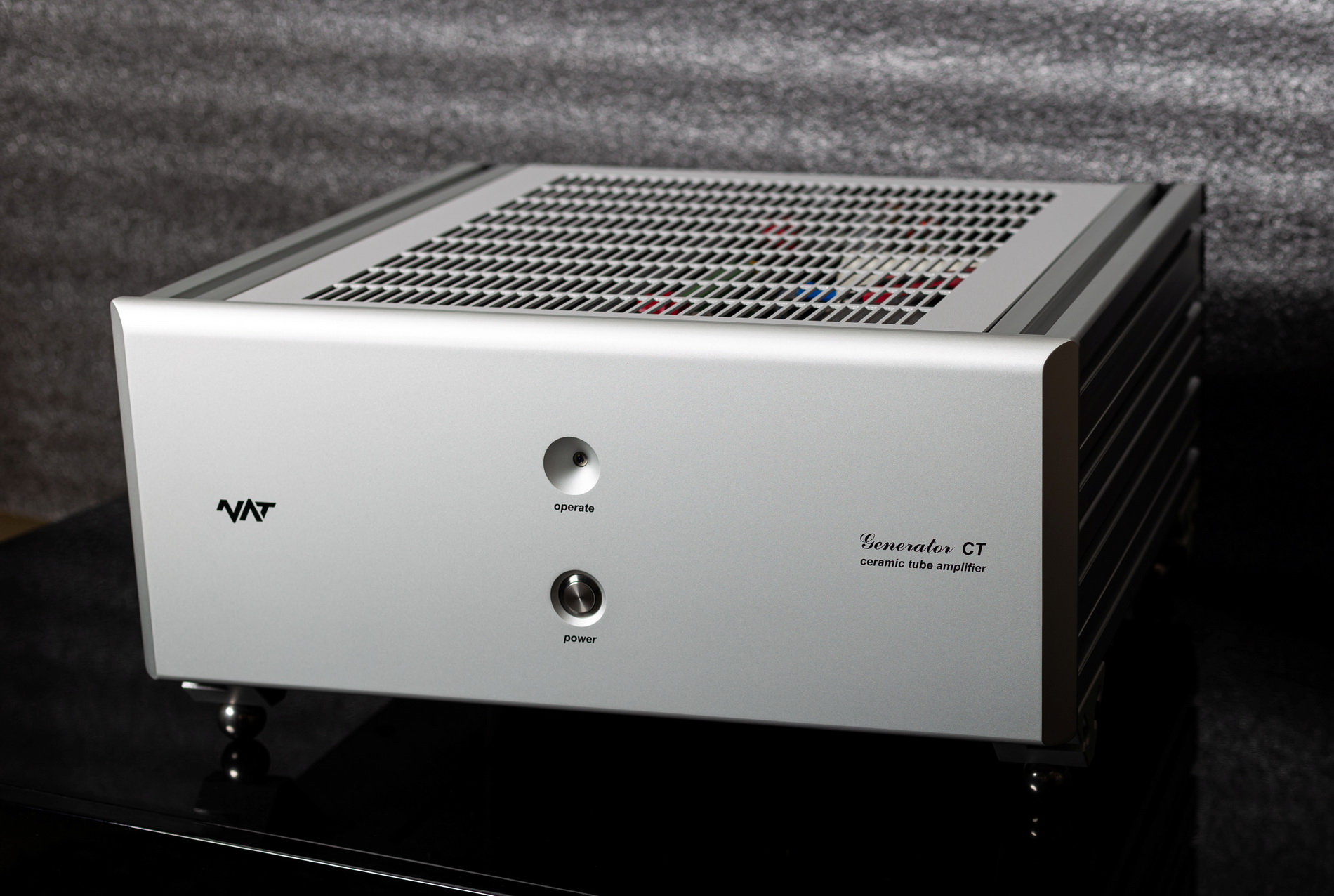

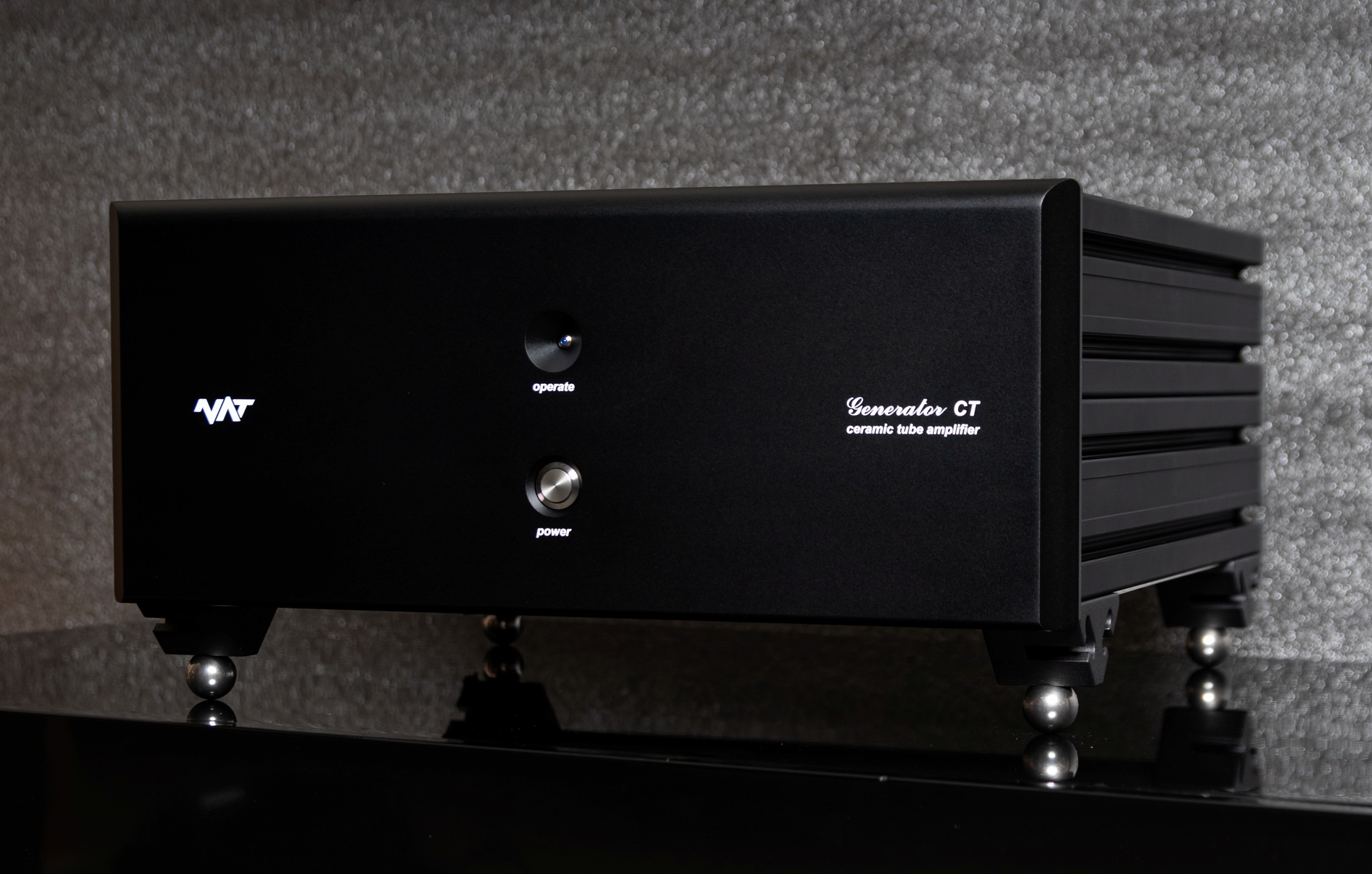

Generator CT is offered in silver or black casework, with a machined aluminium chassis, protective top ventilation and high-current loudspeaker connections suited to a monoblock installation.

Complete product information

Manufacturer technical data

Complete technical specification

Complete manufacturer specifications and engineering information for Generator CT.

Configuration
Single-Ended (realized with SINGLE triode tube) pure Class A
Frequency Response
8 Hz to 70 kHz -3dB
Input Sensitivity
1.25 V RMS for 100 Watts
Input impedance
100 k ohms parallel with 200pF
Power Output
up to 100 Watts @ 1 kHz, @ 4 ohms or @ 8 ohms
Power Requirement
110 to 240 VAC @ 50 to 60 Hz, 270 VA max. (set in factory)
Gain
27 dB (x22.5)
Dimensions
19" (483 mm) wide x 19" (480 mm) deep with connectors x 8.7" (222 mm) high
Weight
approx. 95 lbs (43kg) unpacked / per block
TOTAL Weight
approx. 254 lbs ( 115 kg) packed in "flight case" crate / per pair
Noise
110 dB below rated output "A" weighted
Phase status
Regular ( 0 )
Tube Complement
6S31B-V & 1 x GI-7B both by military grade
Generator CT

Product details

Product photography & engineering

Product details.

NAT Audio product photography, construction, materials and finish.

Photography: NAT Audio and the Swedish Statement Audio catalogue.
