A configurable I2S input module for integrating compatible digital sources.
The detail
Complete product information
Manufacturer technical data
Complete technical specification
Complete manufacturer specifications and engineering information for MSB Universal I2S Input.
- Configuration
- Software-configurable pin and mapping profiles; additional profiles may be added by firmware
- Product type
- Software-configurable modular I2S digital input
- Connector
- HDMI-style connector using an HDMI-standard cable
- Interface warning
- Carries I2S only; it is not an HDMI video/audio input and does not use HDMI 2.0 protocols
- PCM support
- Up to 768 kHz, source-dependent
- DSD support
- Up to DSD512, source-dependent
- Signalling
- 3.3 V LVDS data channels only
- Isolation
- Galvanic isolation barrier
- Word Sync
- Isolated Word Sync output
- Clocking
- Asynchronous unless the source supports Word Sync
- Error correction
- None
- Cable guidance
- Shorter cable runs than ProISL
- Official source profiles
- PS Audio PerfectWave SACD Transport; Antipodes K50/K41/K22/K21/Oladra; HiFi Rose; Innuos Zen Next-Gen/ZENith Next-Gen/PULSAR; Jays Audio CDT3-MK3
- Installation
- Update DAC or Digital Director firmware before installation and configuration
Product details
Product photography & engineering
Product details.
MSB product photography, construction, materials and finish.

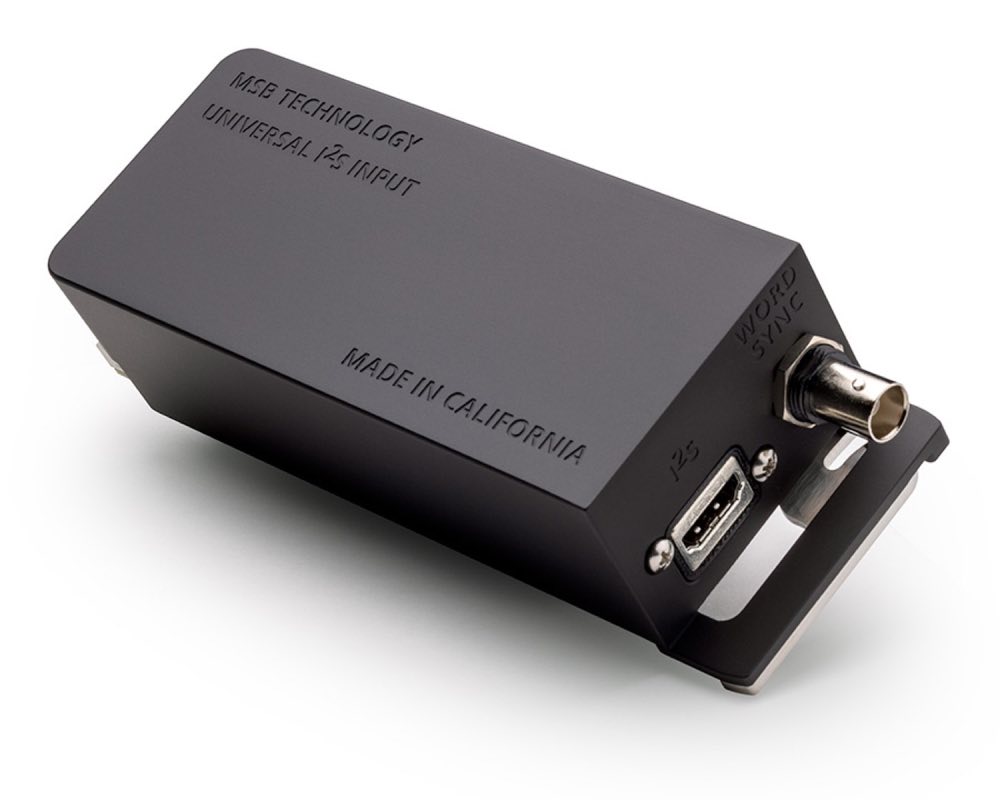

MSB Universal I2S Input · manufacturer photograph
Showing the model’s form, proportions, materials and finish.
Photography: MSB and the Swedish Statement Audio catalogue.
