The flagship Digital Director for compatible Select and Reference-level MSB systems.
Original MSB image · selected finish
Selected finishMatte SilverChassis
Material palette
Explore the finish.
Choose each finish to view the closest original MSB product image for the selected configuration. Product colours are never digitally altered.
This model is offered in silver and black anodised finishes. Previews use MSB photography; final availability is confirmed before order.
01
Chassis
Swatches are a selection guide. Natural grain, ambient light and screen settings affect appearance; the final physical sample and availability are confirmed before order.
The detail
Complete product information
Manufacturer technical data
Complete technical specification
Complete manufacturer specifications and engineering information for MSB Select Digital Director.
- Power supply
- High-performance linear supply with isolated custom transformers and automatic 120/240 V transformer switching
- Digital inputs
- 4 advanced isolated input-module slots
- Chassis and finishes
- CNC-machined billet; matte silver or matte black anodised
- Chassis dimensions
- 17.5 × 17.5 × 3 in / 444 × 444 × 79 mm without feet
- Shipping dimensions
- 23 × 23 × 7 in / 585 × 585 × 178 mm
- Weight
- 35 lb / 16 kg
- Shipping weight
- 42 lb / 19 kg
- Product type
- Current Digital Director upgrade for the legacy Select DAC ecosystem
- Processing platform
- 2 DSPs rated at 12 billion operations per second each, working with 2 dedicated FPGAs
- Digital connection
- ProISL laser-fibre link with two-way product control
- Supported PCM
- 44.1 kHz–3,072 kHz up to 32-bit, input-dependent
- Supported DSD
- DSD64, DSD128, DSD256 and DSD512; DoP on all inputs
- Controls
- 12 V trigger, IR remote, power button, power-control mode switch and display-brightness wheel
- Fuse
- 2.5 A, 250 V slow-blow, 5 × 20 mm
- Stack height
- 3.625 in / 92 mm
- Foot thread
- M6 × 1
- Included accessories
- Pro ISL module and cable, Control Link module and Toslink cable, user manual, IEC power cable and 3.5 mm mini-jack trigger cable
- Official firmware at audit
- Director v20.11, released 16 April 2026
Product details
Product photography & engineering
Product details.
MSB product photography, construction, materials and finish.

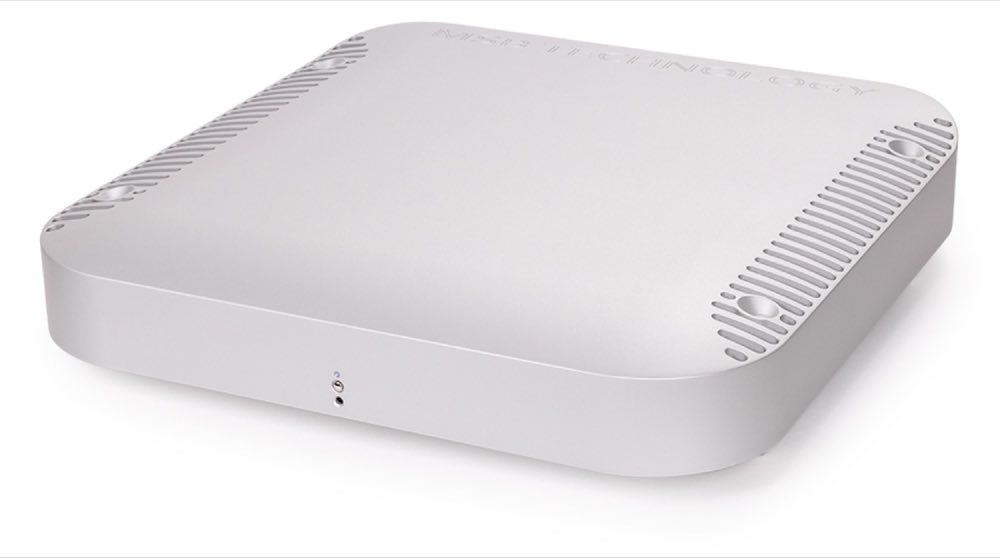

MSB Select Digital Director · manufacturer photograph
Showing the model’s form, proportions, materials and finish.
Photography: MSB and the Swedish Statement Audio catalogue.
