A balanced subwoofer isolation interface designed to preserve system grounding and signal integrity.
Original MSB image · selected finish
Selected finishMatte SilverChassis
Material palette
Explore the finish.
Choose each finish to view the closest original MSB product image for the selected configuration. Product colours are never digitally altered.
This model is offered in silver and black anodised finishes. Previews use MSB photography; final availability is confirmed before order.
01
Chassis
Swatches are a selection guide. Natural grain, ambient light and screen settings affect appearance; the final physical sample and availability are confirmed before order.
The detail
Complete product information
Manufacturer technical data
Complete technical specification
Complete manufacturer specifications and engineering information for MSB Pro Sub Isolator.
- Gain-match settings
- Low / Medium / High
- Input
- Speaker binding posts accepting banana plugs or spades
- Input lugs
- Rotatable and indexable; dealer or MSB configuration recommended
- Output
- Isolated balanced XLR to powered subwoofer
- Dimensions
- 8.2 × 5.9 × 2.44 in / 208.3 × 149.9 × 62.0 mm
- Product type
- Speaker-level-to-balanced-line-level subwoofer isolation interface
- Topology
- Audiophile-grade isolation transformer; taps the signal after the power amplifier and steps it down to isolated subwoofer line level
- Low setting
- For source-amplifier gain below 20 dB
- Medium setting
- For source-amplifier gain from 20 to 26 dB
- High setting
- For source-amplifier gain above 26 dB
- MSB 200 Series guidance
- 23.8 dB amplifier gain; use Medium
- MSB 500 Series guidance
- Match the isolator setting to the amplifier gain setting
- Ventilation
- Provide ventilation if the source amplifier consistently exceeds 500 W per channel
- Connection caution
- Connect at amplifier output or loudspeaker terminals; avoid stacking spades where possible
Product details
Product photography & engineering
Product details.
MSB product photography, construction, materials and finish.

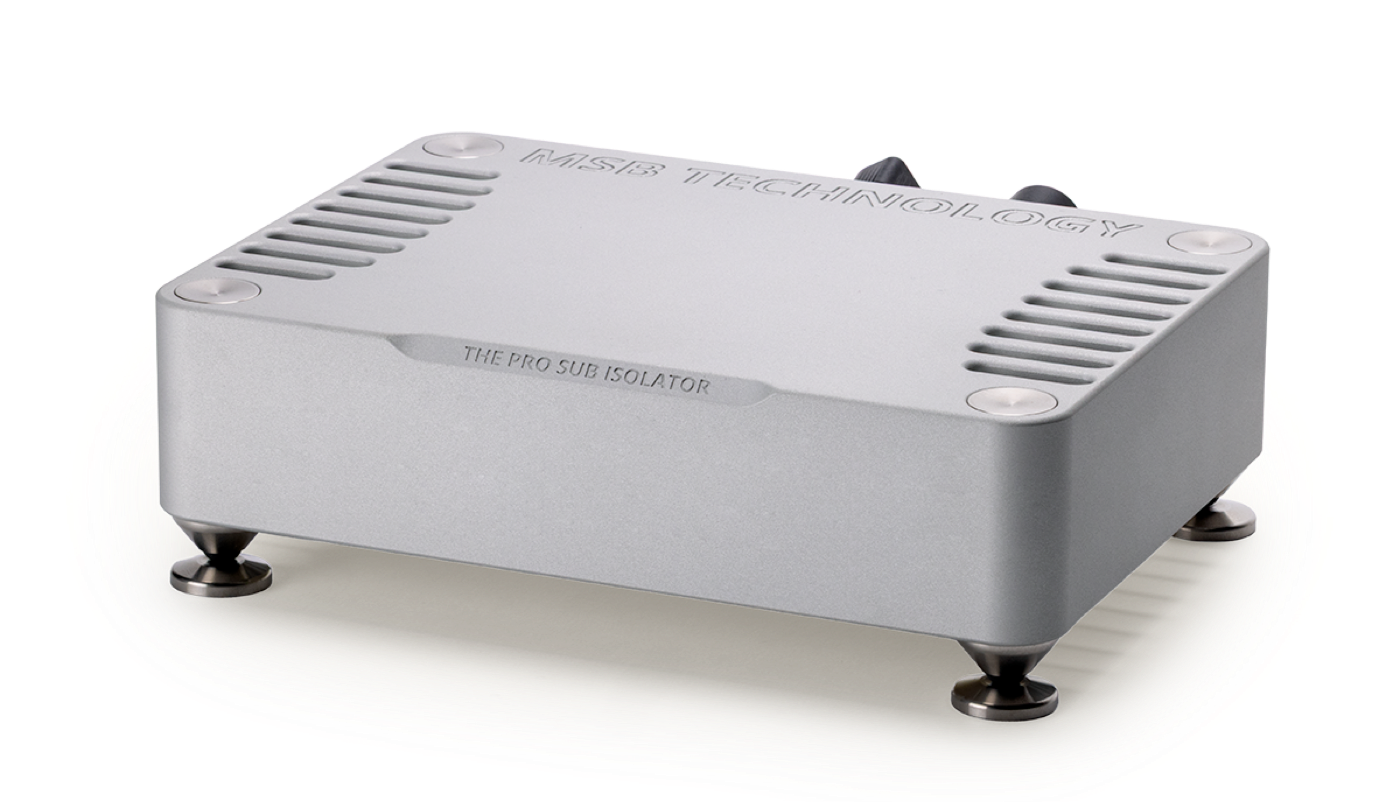

MSB Pro Sub Isolator · manufacturer photograph
Showing the model’s form, proportions, materials and finish.
Photography: MSB and the Swedish Statement Audio catalogue.
