Options & finishes

Personal configuration

Available finishes & options.

Finish and configuration choices for Marten Mingus Orchestra. Final samples, specification and pricing are confirmed before order.

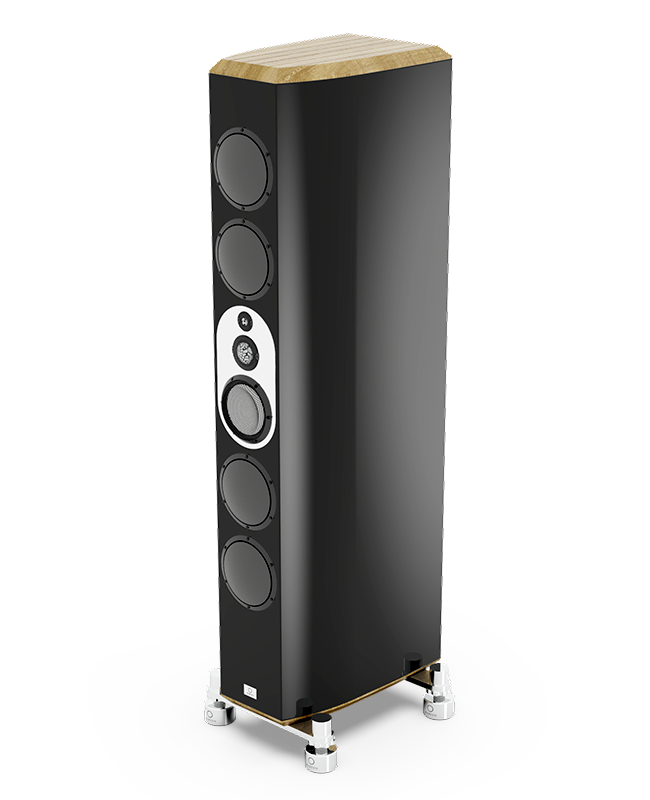

Marten Mingus Orchestra — Matte Oak

Original Marten image · selected finish

Selected finishMatte OakTop & bottom panels

Material palette

Explore the finish.

Choose each finish to view the closest original Marten product image for the selected configuration. Product colours are never digitally altered.

The main body is Piano Black fibre laminate; the selection below applies to the top and bottom panels.

01

Top & bottom panels

Swatches are a selection guide. Natural grain, ambient light and screen settings affect appearance; the final physical sample and availability are confirmed before order.

Configuration & option pricing

Choose your configuration.

Select a factory configuration or upgrade to see the estimated price in RM.

Piano Black, Grey, Plum, Red or Gold. These finishes are included in the listed pair price.

Uses the product's listed standard configuration.

Estimated total

RM 1,230,000
Listed standard configuration
RM 1,230,000
Standard finishes
Included
No upgrade
Enquire with this configuration Marten 2026 EUR retail price list. Final configuration, availability, delivery and price are confirmed before order.

The detail

The crown jewel of the Mingus series offers the strength and clarity that only Diamond drivers can. We forged our current design and technology in a beautifully formed Mingus cabinet. Employing technology and design cues from Coltrane and Heritage, it bridges the gap between both.

WHAT YOU GET Beauty and the best.

Mingus Orchestra employs our market-leading first order crossover. Combined with Cell drivers from Accuton, this creates flawless time coincidence, as well as perfect time and phase coherence. The result is record-low distortion, delivering the most natural and dynamic sound.

With two Diamond drivers, the sound is so clean and true that you can hear every nuance and motion of your music.

4-way bass reflex First order crossover Cell drivers 51mm and 20mm Diamond drivers

Complete product information

Manufacturer technical data

Complete technical specification

Complete manufacturer specifications and engineering information for Marten Mingus Orchestra.

Configuration
4-way
Front drivers
4 x 8 ” Aluminium sandwich 1 x 7 ” Pure Ceramic 1 x 2 ” Pure Diamond, 1 x 0.75 ” Pure Diamond
Rear drivers
4 x 10 ” Passive Aluminium sandwich
Crossover
First order · 350, 3800 & 8000 Hz
Frequency range
22-100000 Hz ±2dB
Sensitivity
89 dB / 1 m / 2.83V
Impedance
6 ohm (3.1 Ohm min)
Power rating
450 W
Internal wiring
Jorma Design (optional Statement)
Terminals
WBT Nextgen Bi-wire
Cabinet
25-42 mm fibre laminate Piano Black, with Solid Wood top and bottom
Stands
Polished stainless steel with Marten IsoPucks
Dimensions (W × H × D)
33.5 x 173 x 54 cm (13.2 x 68.1 x 21.3”)
Weight
130 Kg (288 lbs)
Marten Mingus Orchestra Front, side and plan technical drawing
Front, side and plan
Marten Mingus Orchestra engineering drawings

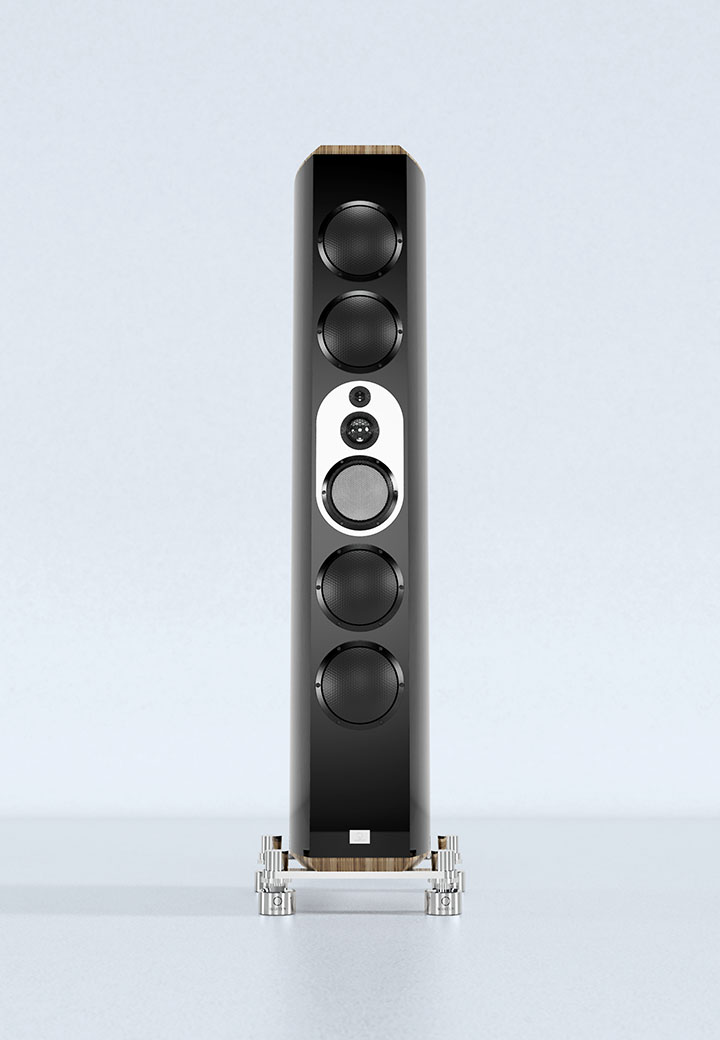

Product details

Product photography & engineering

Product details.

Marten product photography, construction, materials and finish.

Photography: Marten and the Swedish Statement Audio catalogue.
