Configuration and pricing choices for Axiom tonearm 12" Standard Edition. Final specification, availability and pricing are confirmed before order.

Configuration & option pricing

Choose your configuration.

Select a factory configuration or upgrade to see the estimated price in RM.

Black or silver satin-matt finish with fixed headshell.

Estimated total

RM 114,950
Satin-matt finish
Included
Enquire with this configuration Acoustical Systems February 2026 EUR retail price lists. Final configuration, availability, delivery and price are confirmed before order.

The detail

State-of-the-art materials - combined with high-tech production and finishing methods and unique solutions

an idea is transformed into a fascinating analog component

* the AXIOM is entirely designed, made and assembled in Germany

* every AXIOM is assembled, tested and calibrated by the designer

* all parts of the AXIOM - even the screws, the inner wiring and

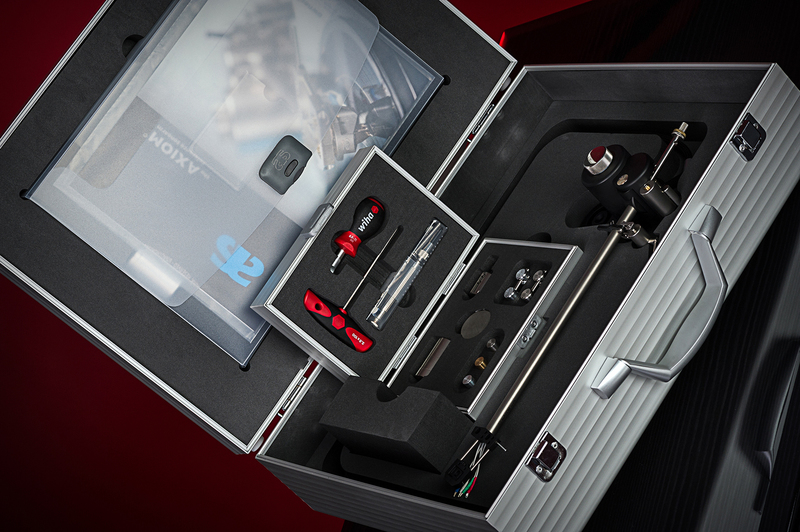

it's customized aluminum transport case are made in Germany

* the AXIOM is a full dynamic balanced design

* the AXIOM is a full lateral balanced design

* full radial/axial cardan shaft double gimbal bearing, using custom made to order German nano instrumental ball bearings of aerospace grade with the lowest move friction possible today.

* bearings are mounted in a certified laboratory under controlled clean-air room conditions and with the bearing-house preheated to ensure perfect contact closure fit of bearings after cool down.

* the mounting board, bearing houses, external and internal VTA tower and fixed headshell mounting are made from triple-tempered German AP70XX dural air frame grade aluminum and stress-relieved V2a stainless steel.

* the mounting plate is hardened stainless steel.

* the counterweight assembly is made from German HD18 Tungsten.

* the arm wand is an unique composite of Titanium and Carbon with inner surface liquid dampening.

* internal wiring is pure silver litz w/soft teflon insulation (other options available on customer's wish and directive).

* the AXIOM follows an all new geometrical design.

* the AXIOM is a 12" effective length design.

Nevertheless, the mounting distance of the AXIOM is the same as with most standard 9"-10" tonearms!

Complete product information

Manufacturer technical data

Complete technical specification

Complete manufacturer specifications and engineering information for Axiom tonearm 12" Standard Edition.

Dynamic tunable effective moving mass
- from 22 gr to 42 gr effective moving mass in fixed mounting version. - from 29 gr to 48 gr effective moving mass in SME-bayonet version.
Dynamic antiskating
- w/exchangeable inserts for any tangential curve!

Exclusive features of the AXIOM:

* VTF (vertical tracking force) non-touch-adjustment: on-the-fly - during play.

* SRA adjustment is independent from tonearm height (fixed mounting head)

* dynamic tunable effective moving mass

* dynamic antiskating

* carbide hardend titanium / carbon-composite arm pipe with

internal liquid dampening on whole inner surface.

* exchangeable inserts in counterweight tuned to cartridge's compliance.

Thus eliminating low frequency resonance peak.

* the AXIOM and it’s bearing axis can be precisely leveled on it's own. This is independent from the plinth's level and done with 3 precision set screws around the center mounting screw (these are covered by the large round metal cap and not visible when mounted).

All these features listed above you will find in the AXIOM only.

* the AXIOM is a full dynamically balanced design

* the AXIOM is a full lateral balanced design

* the AXIOM is a special 12" design with mounting distance of 9-10" tonearm
